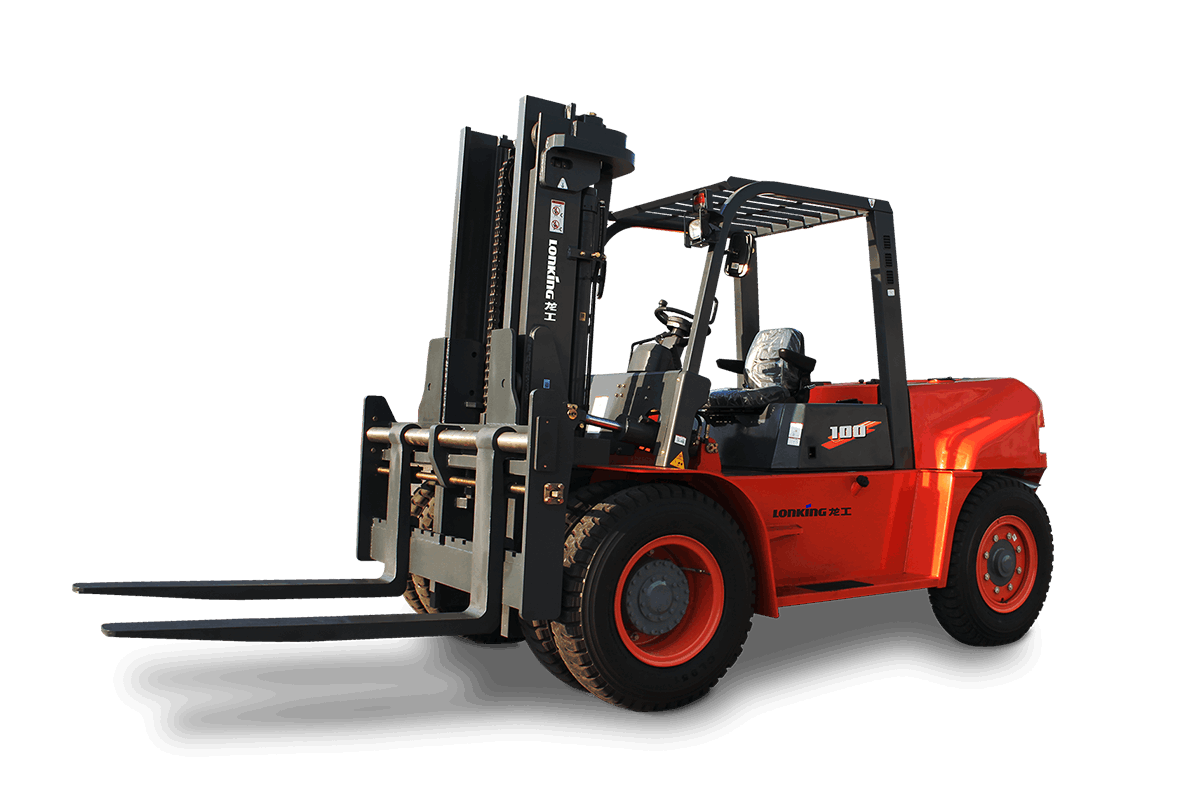

LG85/100DTIIIBalanceweight Type Forklift Truck With Engine

Strong power and wide adaptability to working conditions: It is commonly equipped with high-performance engines such as National IV electronic control high-pressure common rail, with abundant power output. It can not only easily lift and transport heavy cargo, but also smoothly pass through complex road conditions such as 20 ° steep slopes when fully loaded. It is suitable for various high-intensity work scenarios such as warehousing, construction sites, ports, etc.

LG85/100DTIIIBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG85DT III	LG100DT III
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	8500	10000
	1.05	Load center	J	mm	600
Dimensions	2.01	STD Max height (with backrest)		mm	4345	4500
	2.02	STD Max lifting height	h1	mm	3000	3000
	2.03	Overhead guard height	h4	mm	2560	2560
	2.04	Overall length (with fork)	L1	mm	5465	5780
	2.05	Wheelbase	L2	mm	2500	2800
	2.06	Front overhang	L3	mm	705	720
	2.07	Rear overhang	L4	mm	740	740
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	300/245	300/245
	2.09	Overall width	W1	mm	2165	2165
	2.1	Adjusting range of fork (outside)		mm	450-2090	450-209`0
	2.11	STD Fork size (L5WT)		mm	1520×170×70	1520×175×85
	2.12	Front wheel tread	S	mm	1600	1600
	2.13	Rear wheel tread	P	mm	1700	1700
	2.14	Min.turning radius	R1	mm	3650	3900
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	5755	6020
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	5755	6020
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=4/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			9.00-20-14PR
	3.04	Tires size, rear			9.00-20-14PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	24/28	24/28
	4.02	Max.lifting speed, loaded/unloaded		mm/s	390/420	330/350
	4.03	Lowering speed, loaded/unloaded		mm/s	420/410	310/300
	4.04	Max.traction, loaded		KN	60	60
	4.05	Max.gradient, loaded/unloaded		%	23/20	21/20
	4.06	STD operating weight (with oil & water)		kg	12150	13250
	4.07	Axles loading,front/rear (loaded)		kg	18600/2250	21100/2150
	4.08	Axles loading,front/rear (unloaded)		kg	5500/6800	6050/7200
	4.09	Service brake			Power brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever
	4.11	Drive type			Automatic
	4.12	Number of gear (front/rear)			2/2
	4.13	Fuel tank capacity		L	160
	4.14	Battery votage/capacity		V/Ah	2×12/90
