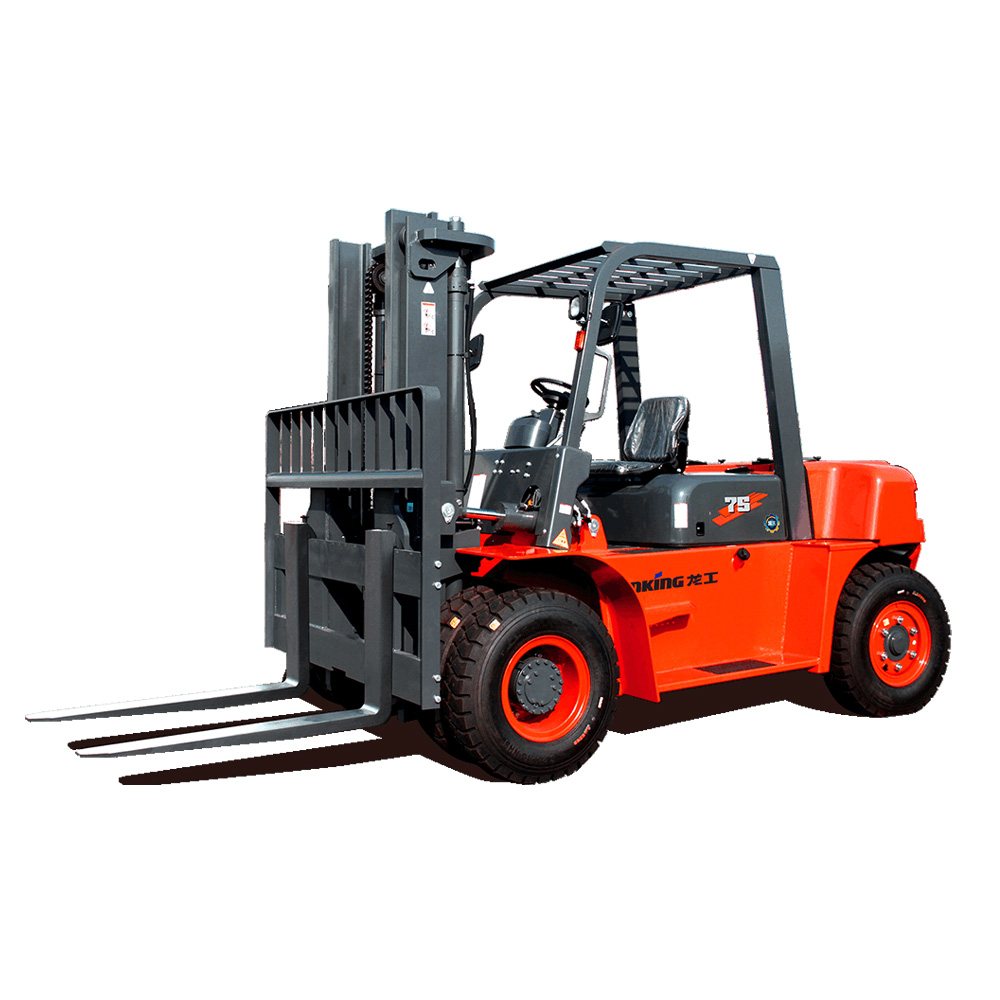

LG75DTBalanceweight Type Forklift Truck With Engine

Strong durability and long service life: The car body is mostly made of SMC new materials or steel structures optimized by finite element analysis, which have strong resistance to torsion and corrosion. At the same time, strengthen the fuel and hydraulic oil filtration systems, reduce the loss of impurities on core components, select industry renowned brands for key components, and extend the service life of the entire machine.

LG75DTBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG75DT III	LG75DTG(Stone)
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	7500
	1.05	Load center	J	mm	600
Dimensions	2.01	STD Max height (with backrest)		mm	4430
	2.02	STD Max lifting height	h1	mm	3000
	2.03	Overhead guard height	h4	mm	2510
	2.04	Overall length (with fork)	L1	mm	5025	5175
	2.05	Wheelbase	L2	mm	2250
	2.06	Front overhang	L3	mm	655
	2.07	Rear overhang	L4	mm	900
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	300/270
	2.09	Overall width	W1	mm	1995
	2.1	Adjusting range of fork (outside)		mm	300-1805	650-1220
	2.11	STD Fork size (L5WT)		mm	70×1220×150	70×1370×150
	2.12	Front wheel tread	S	mm	1470
	2.13	Rear wheel tread	P	mm	1500
	2.14	Min.turning radius	R1	mm	3460
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	5535	5685
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	5535	5685
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=4/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			8.25-20-14PR
	3.04	Tires size, rear			8.25-15-14PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	24/29
	4.02	Max.lifting speed, loaded/unloaded		mm/s	480/510
	4.03	Lowering speed, loaded/unloaded		mm/s	410/390
	4.04	Max.traction, loaded		KN	62
	4.05	Max.gradient, loaded/unloaded		%	25/20
	4.06	STD operating weight (with oil & water)		kg	10330
	4.07	Axles loading,front/rear (loaded)		kg	15730/2100
	4.08	Axles loading,front/rear (unloaded)		kg	4130/6200
	4.09	Service brake			Power brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever
	4.11	Drive type			Automatic
	4.12	Number of gear (front/rear)			2/2
	4.13	Fuel tank capacity		L	140
	4.14	Battery votage/capacity		V/Ah	2×12/90
