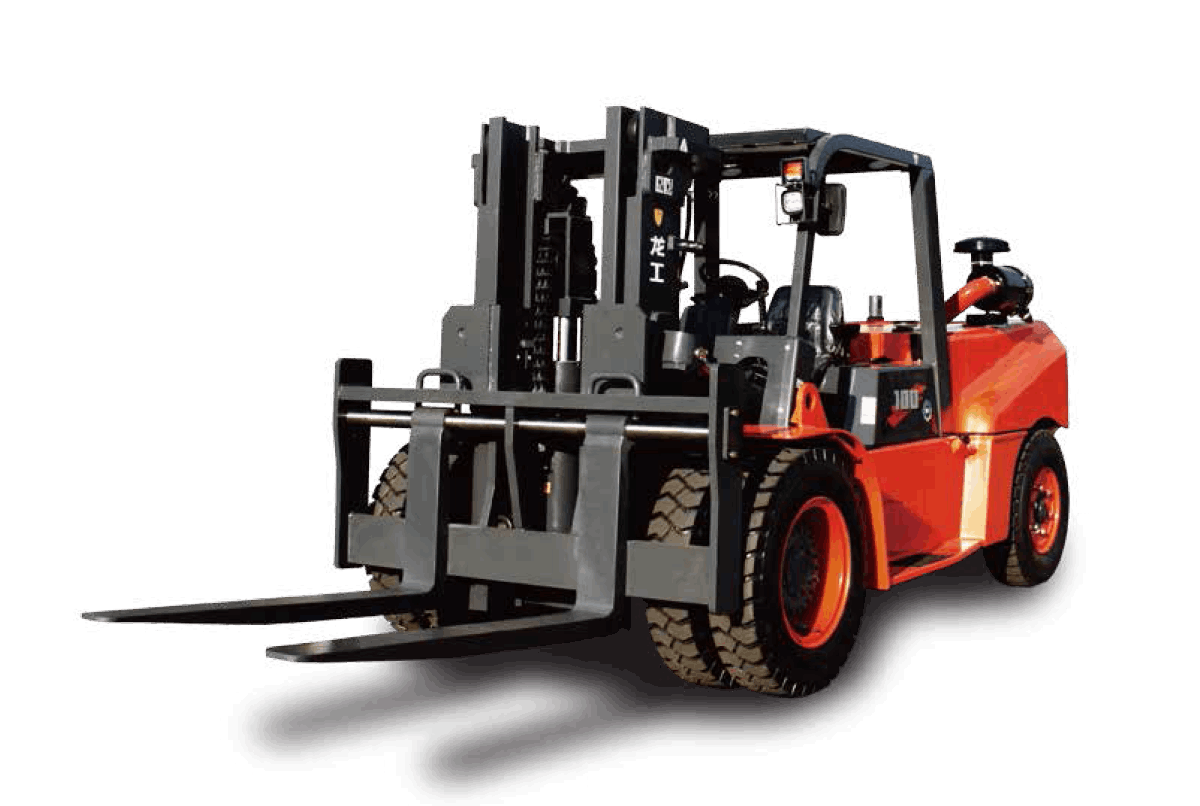

LG60/80/100DTBIIIBalanceweight Type Forklift Truck With Engine

Outstanding fuel economy: By using load sensitive priority steering hydraulic system and other technologies to reduce power loss, some 4.5L models have a fuel consumption of only 3.66L per hour, which can significantly reduce fuel consumption costs compared to similar products. At the same time, there is no post processor parking regeneration design, which can reduce fuel consumption waste caused by shutdown.

LG60/80/100DTBIIIBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG60DTBIII	LG80DTBIII	LG100DTBIII
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	6000	8000	10000
	1.05	Load center	J	mm	600
Dimensions	2.01	STD Max height (with backrest)		mm	3932	3932	3262
	2.02	STD Max lifting height	h1	mm	2500 (Free)	2500 (Free)	2100 (Free)
	2.03	Overhead guard height	h4	mm	2180
	2.04	Overall length (with fork)	L1	mm	4780	4995	5540
	2.05	Wheelbase	L2	mm	2250	2250	2800
	2.06	Front overhang	L3	mm	617	647	700
	2.07	Rear overhang	L4	mm	715	900	840
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	300/150	300/150	380/245
	2.09	Overall width	W1	mm	1945
	2.1	Adjusting range of fork (outside)		mm	300-1805	300-1805	450-1780
	2.11	STD Fork size (L5WT)		mm	1220×150×60	1220×150×80	1220×170×70
	2.12	Front wheel tread	S	mm	1440	1440	1430
	2.13	Rear wheel tread	P	mm	1500
	2.14	Min.turning radius	R1	mm	3280	3500	4000
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	5315	5445	6400
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	5315	5445	6400
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=4/2
	3.02	Tires type			Solid/Pneumatic		Pneumatic
	3.03	Tires size, front			250-15	250-15	8.25-20-14PR
	3.04	Tires size, rear			250-15-16PR	250-15-16PR	9.00-16-16PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	23/25	23/25	24/28
	4.02	Max.lifting speed, loaded/unloaded		mm/s	510/530	480/510	330/370
	4.03	Lowering speed, loaded/unloaded		mm/s	350/300	350/300	350/300
	4.04	Max.traction, loaded		KN	64	64	62
	4.05	Max.gradient, loaded/unloaded		%	35/20	25/20	22/20
	4.06	STD operating weight (with oil & water)		kg	8750	10200	11900
	4.07	Axles loading,front/rear (loaded)		kg	13100/1650	16400/1800	19600/2300
	4.08	Axles loading,front/rear (unloaded)		kg	3900/4850	4000/6200	4800/7100
	4.09	Service brake			Power brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever
	4.11	Drive type			Automatic
	4.12	Number of gear (front/rear)			2/2
	4.13	Fuel tank capacity		L	140
	4.14	Battery votage/capacity		V/Ah	2×12/90
