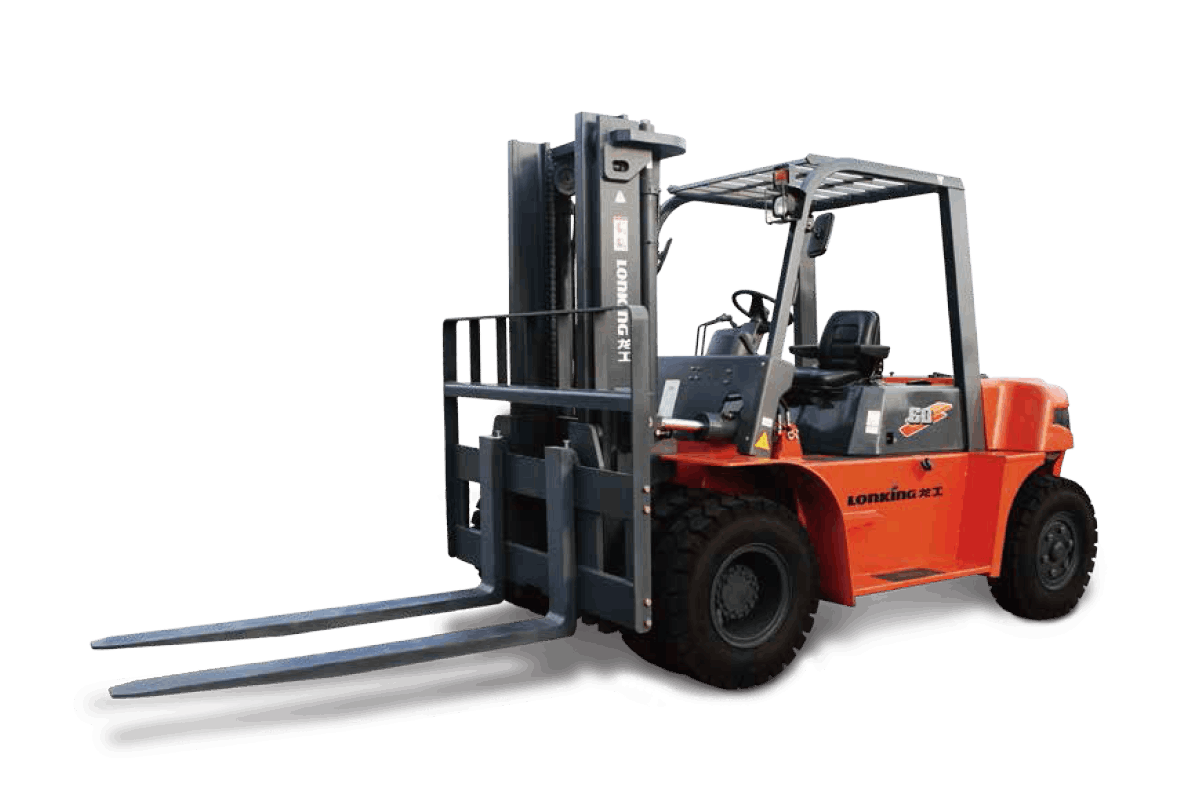

LG50/60/70DTIIIBalanceweight Type Forklift Truck With Engine

Easy maintenance and low cost: The hood can be opened at an angle of up to 80 °, and the floor rack can be disassembled without tools, making it convenient for quick maintenance of core components such as the engine. Moreover, a large number of components are compatible with the same series of lightweight forklifts, and the design without exhaust processors also reduces carbon deposition issues, saving a significant amount of maintenance costs annually.

LG50/60/70DTIIIBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG50DT Ⅲ	LG60DT Ⅲ	LG70DT Ⅲ
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	5000	6000	7000
	1.05	Load center	J	mm	600
Dimensions	2.01	STD Max height (with backrest)		mm	4430	4430	4430
	2.02	STD Max lifting height	h1	mm	3000	3000	3000
	2.03	Overhead guard height	h4	mm	2450	2450	2450
	2.04	Overall length (with fork)	L1	mm	4715	4790	4840
	2.05	Wheelbase	L2	mm	2300	2300	2300
	2.06	Front overhang	L3	mm	594	594	599
	2.07	Rear overhang	L4	mm	600	675	720
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	230/200	230/200	230/200
	2.09	Overall width	W1	mm	1995	1995	1995
	2.1	Adjusting range of fork (outside)		mm	300-1805	300-1805	300-1805
	2.11	STD Fork size (L5WT)		mm	1220×150×60		1220×150×65
	2.12	Front wheel tread	S	mm	1470	1470	1470
	2.13	Rear wheel tread	P	mm	1700	1700	1700
	2.14	Min.turning radius	R1	mm	3240	3300	3370
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	5255	5315	5385
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	5255	5315	5385
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=4/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			8.25-15-14PR
	3.04	Tires size, rear			8.25-15-14PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	24/29	24/29	24/29
	4.02	Max.lifting speed, loaded/unloaded		mm/s	510/530	510/530	500/530
	4.03	Lowering speed, loaded/unloaded		mm/s	400/390
	4.04	Max.traction, loaded		KN	63	63	63
	4.05	Max.gradient, loaded/unloaded		%	38/20	35/20	32/20
	4.06	STD operating weight (with oil & water)		kg	8320	8940	9540
	4.07	Axles loading,front/rear (loaded)		kg	11950/1470	13350/1750	14740/1800
	4.08	Axles loading,front/rear (unloaded)		kg	4250/4170	4100/5000	3890/5650
	4.09	Service brake			Power brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever
	4.11	Drive type			Automatic
	4.12	Number of gear (front/rear)			2/2
	4.13	Fuel tank capacity		L	140
	4.14	Battery votage/capacity		V/Ah	2×12/90
