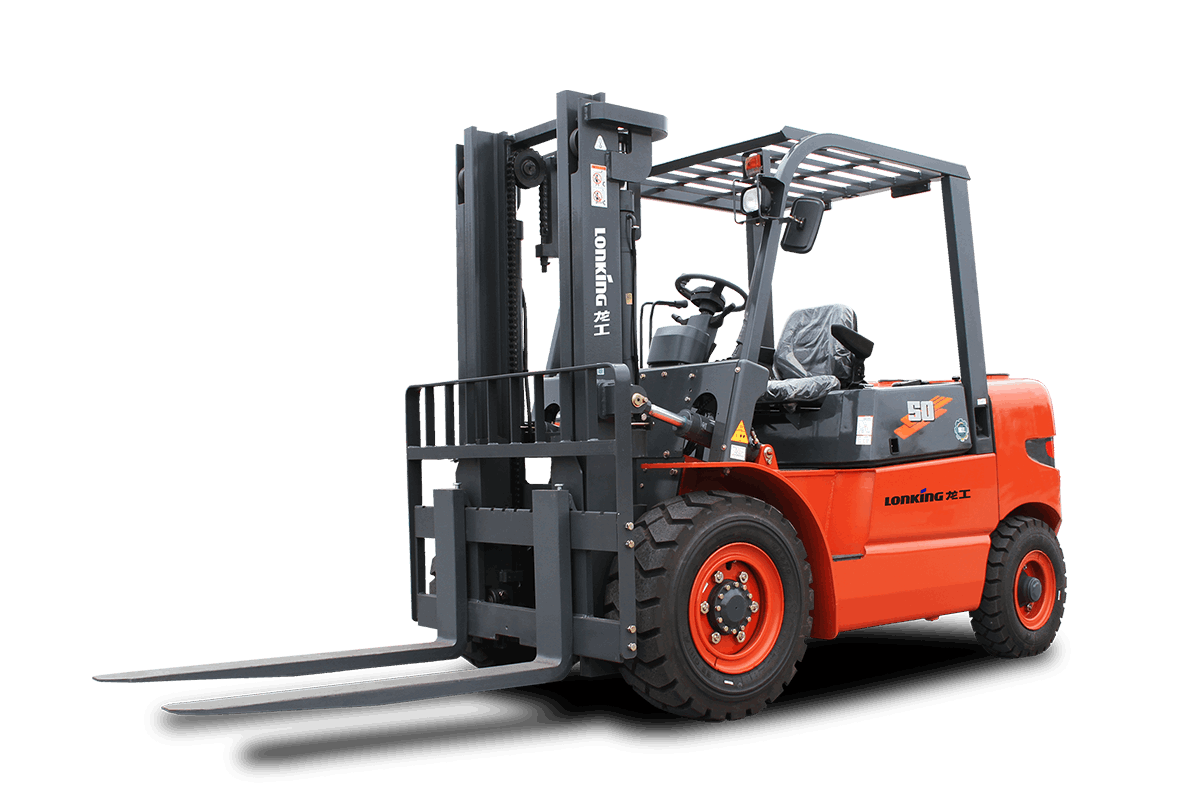

LG40/45/50DTIVBalanceweight Type Forklift Truck With Engine

Comfortable operation reduces labor intensity: adopting ergonomic design, equipped with adjustable shock-absorbing seats and suspended roof guards, which can reduce the vibration impact of bumpy roads; Electric hydraulic power steering, integrated control lever and other configurations, combined with a side control layout, make operation more effortless and less prone to fatigue during long-term work.

LG40/45/50DTIVBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG40DT Ⅳ	LG45DT Ⅳ	LG50DT Ⅳ
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	4000	4500	5000
	1.05	Load center	J	mm	500	500	500
Dimensions	2.01	STD Max height (with backrest)		mm	4708	4708	4708
	2.02	STD Max lifting height	h1	mm	3000	3000	3000
	2.03	Overhead guard height	h4	mm	2250	2250	2250
	2.04	Overall length (with fork)	L1	mm	4245	4265	4309
	2.05	Wheelbase	L2	mm	2100	2100	2100
	2.06	Front overhang	L3	mm	555	555	555
	2.07	Rear overhang	L4	mm	540	540	585
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	215/170	215/170	215/170
	2.09	Overall width	W1	mm	1480	1480	1480
	2.1	Adjusting range of fork (outside)		mm	300-1340	300-1340	300-1340
	2.11	STD Fork size (L5WT)		mm	1070×150×55
	2.12	Front wheel tread	S	mm	1180	1180	1180
	2.13	Rear wheel tread	P	mm	1190	1190	1190
	2.14	Min.turning radius	R1	mm	2830	2860	2900
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	4485	4515	4555
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	4685	4715	4755
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=2/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			8.25-15-14PR	300-15-20PR
	3.04	Tires size, rear			7.00-12-12PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	21/24	21/24	21/24
	4.02	Max.lifting speed, loaded/unloaded		mm/s	460/500	460/500	460/500
	4.03	Lowering speed, loaded/unloaded		mm/s	Loaded ≤ 600/Unloaded ≥ 300
	4.04	Max.traction, loaded		KN	30	30	30
	4.05	Max.gradient, loaded/unloaded		%	20/20	20/20	20/20
	4.06	STD operating weight (with oil & water)		kg	6530	6760	7100
	4.07	Axles loading,front/rear (loaded)		kg	9430/1100	10180/1080	10850/1250
	4.08	Axles loading,front/rear (unloaded)		kg	2930/3600	2980/3780	3050/4050
	4.09	Service brake			Power brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever
	4.11	Drive type			Automatic
	4.12	Number of gear (front/rear)			2/1
	4.13	Fuel tank capacity		L	90
	4.14	Battery votage/capacity		V/Ah	2×12/90
