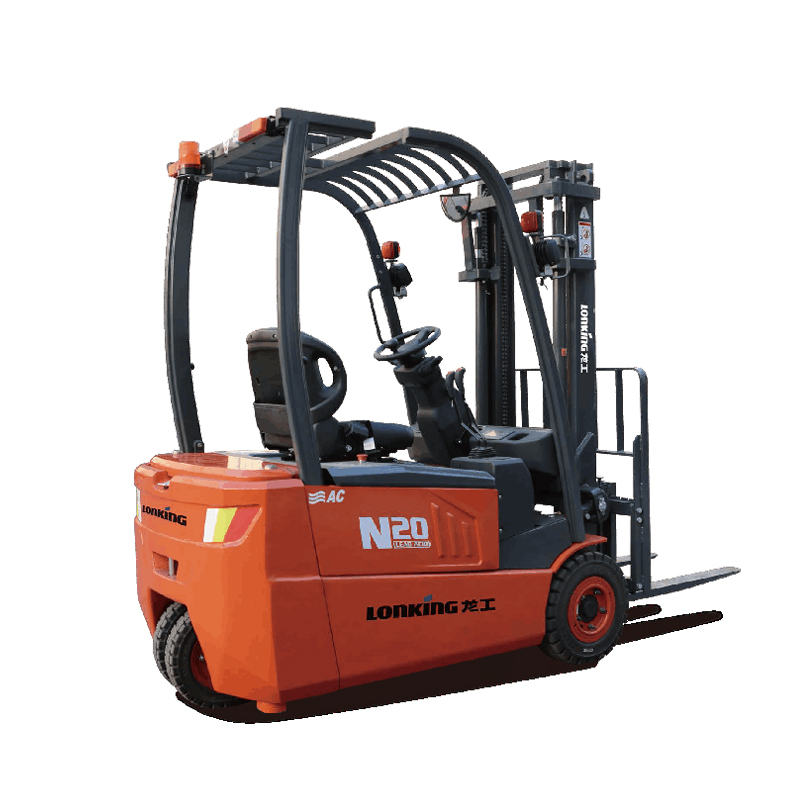

LG/16/18/20BE3 Balance Weight Type Forklift Truck With Battery

Efficient, low consumption, and flexible battery life: Equipped with high-performance lithium batteries and an integrated battery management system, it can achieve full power output until the battery is depleted, and fast charging can be completed in about 1 hour. Some models that use three-phase AC motors save 30% of energy consumption compared to DC motors, and a single charge can meet the needs of two shifts of work; Simultaneously supporting quick lateral battery replacement, even high-intensity operations can avoid prolonged downtime and ensure operational efficiency.

LG/16/18/20BE3 Balance Weight Type Forklift Truck With Battery

No.	Item	Code	Unit
1.01	Manufacturer			LONKING
1.02	Model			LG16BE3	LG18BE3	LG20BE3
1.03	Power type			Electric (AC)
1.04	Rated capacity	Q	kg	1600	1800	2000
1.05	Load center	J	mm	500	500	500
2.01	STD Max height (with backrest)		mm	4028	4028	4028
2.02	STD Max lifting height	h1	mm	3000	3000	3000
2.03	Overhead guard height	h4	mm	2044	2044	2044
2.04	Overall length (with fork)	L1	mm	2875	2875	3133
2.05	Wheelbase	L2	mm	1400	1400	1508
2.06	Front overhang	L3	mm	365	365	365
2.07	Rear overhang	L4	mm	190	190	190
2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	85/105	85/105	85/105
2.09	Overall width	W1	mm	1060	1060	1120
2.1	Adjusting range of fork (outside)		mm	200-970	200-970	200-970
2.11	STD Fork size (L5WT)		mm	920×100×35		1070×120×40
2.12	Front wheel tread	S	mm	910	910	920
2.13	Rear wheel tread	P	mm	175	175	175
2.14	Min.turning radius	R1	mm	1590	1590	1698
2.15	Min aisle width for pallet 1000×1200,crossways		mm	3280	3280	3380
2.16	Min aisle width for pallet 800×1200,lengthways		mm	3400	3400	3508
3.01	Wheels number, front/rear (X=driven wheels)			X=2/1
3.02	Tires type			Solid Tires
3.03	Tires size, front			18×7-8	18×7-8	200/50-10
3.04	Tires size, rear			15×4.5-8	15×4.5-8	15×4.5-8
4.01	Max.traveling speed, loaded/unloaded		km/h	13.5/13.5	13.5/13.5	13/15
4.02	Max.lifting speed, loaded/unloaded		mm/s	300/440	300/440	300/440
4.03	Lowering speed, loaded/unloaded		mm/s	Loaded≤600/Unloaded≥300
4.04	Max.gradient, loaded/unloaded		%	20/20	20/20	20/20
4.05	STD operating weight (with oil & water)		kg	3180	3290	3380
4.06	Axles loading,front/rear (loaded)		kg	4300/620	4570/605	4920/545
4.07	Axles loading,front/rear (unloaded)		kg	1600/1600	1600/1710	1710/1690
4.08	Drive motor		kw	5.4×2	5.4×2	5.4×2
4.09	Lift motor		kw	11	11	11
4.1	Controller			inmotion	inmotion	inmotion
4.11	Battery votage/capacity		V/Ah	48/600	48/600	48/600
