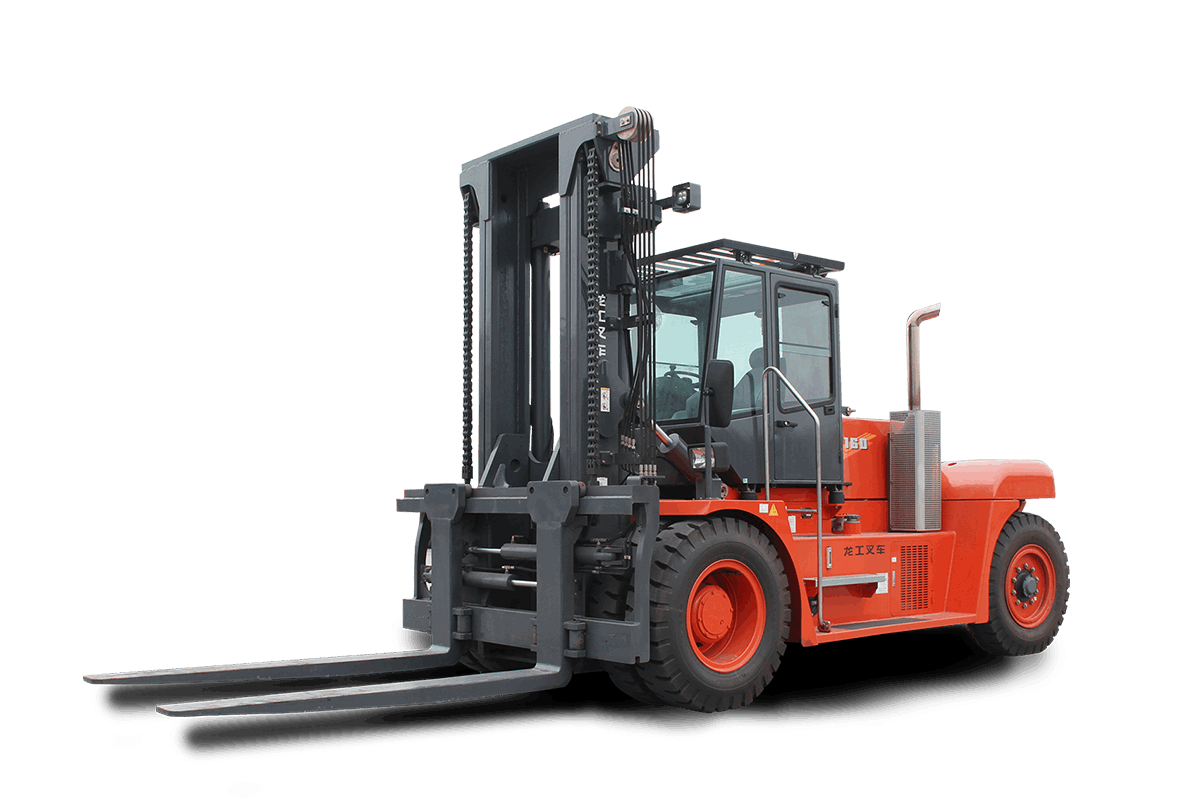

LG120DT/135DT/160DT(A)/160DT(B)Balanceweight Type Forklift Truck With Engine

High load-bearing stability and safety: Adopting a low center of gravity, wide body design with an extended wheelbase, coupled with high-strength door frames and reinforced rib structures, greatly improves stability under heavy loads. Some models also have door frame operation locking function, combined with tilt limit and overload protection devices, which can avoid safety hazards such as cargo tipping during operation.

LG120DT/135DT/160DT(A)/160DT(B)Balanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			LG120DT	LG135DT	LG160DT(A)	LG160DT(B)
	1.03	Power type			Diesel
	1.04	Rated capacity	Q	kg	12000	13500	16000	16000
	1.05	Load center	J	mm	600	600	900	1200
Dimensions	2.01	STD Max height (with backrest)		mm	4668	4700	5425	5685
	2.02	STD Max lifting height	h1	mm	3000	3000	3500	4000
	2.03	Overhead guard height	h4	mm	2610	2974	3566	3262
	2.04	Overall length (with fork)	L1	mm	5945	6712	7410	7870
	2.05	Wheelbase	L2	mm	2950	3250	3800	3750
	2.06	Front overhang	L3	mm	755	785	968	925
	2.07	Rear overhang	L4	mm	720	857	840	795
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	360/266	280/276	330/330	250/250
	2.09	Overall width	W1	mm	2350	2740	2752	2560
	2.1	Adjusting range of fork (outside)		mm	470-2200	470-2380	580-2214	900-2340
	2.11	STD Fork size (L5WT)		mm	1520×200×85	1820×200×85	1820×220×100	2400×250×100
	2.12	Front wheel tread	S	mm	1724	2068	1895	1878
	2.13	Rear wheel tread	P	mm	1850	2120	2120	2120
	2.14	Min.turning radius	R1	mm	4300	4500	5300	5175
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	6775	7300	8288	8700
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	6775	7300	8288	8700
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=4/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			10.00-20-16PR	11.00-20-18PR	12.00-24-20PR	12.00-24-20PR
	3.04	Tires size, rear			10.00-20-16PR	11.00-20-18PR	12.00-24-20PR	12.00-24-20PR
	4.01	Max.traveling speed, loaded/unloaded		km/h	25/27	25/27	22/27	26/29

Other Details
	4.02	Max.lifting speed, loaded/unloaded		mm/s	350/370	360/400	280/300	320/360
	4.03	Lowering speed, loaded/unloaded		mm/s	350/310	410/320	410/320	360/310
	4.04	Max.traction, loaded		KN	85	85	110	130
	4.05	Max.gradient, loaded/unloaded		%	25/20	25	20	28/25
	4.06	STD operating weight (with oil & water)		kg	15300	18000	23500	24000
	4.07	Axles loading,front/rear (loaded)		kg	24900/2400	36500/3000	36500/3000	37200/2800
	4.08	Axles loading,front/rear (unloaded)		kg	7200/8100	10500/13000	10500/13000	11700/12300
	4.09	Service brake			Gas push oil-pedal		Wet brake-pedal
	4.1	Parking brake			Mechanical-hand brake lever		Hydraulic release-push-button
	4.11	Drive type			Hydraulic gearbox	Electrical gearbox	Electrical gearbox	Automatic-DANA
	4.12	Number of gear (front/rear)			2/2	2/2	2/1	3/3
	4.13	Fuel tank capacity		L	200	200	300	250
	4.14	Battery votage/capacity		V/Ah	2×12/90	2×12/90	2×12/120	2×12/120
