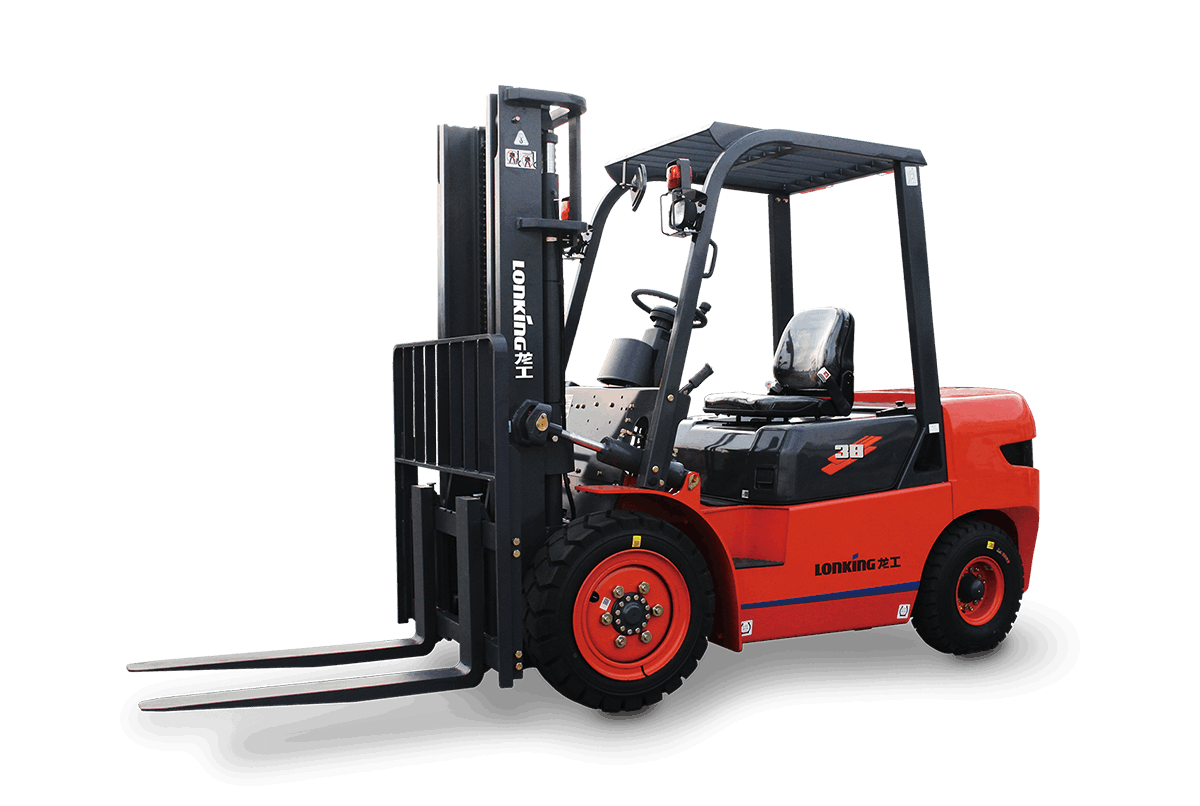

FD15/20/25/30/35/38TIIIBalanceweight Type Forklift Truck With Engine

Flexible and adaptable to narrow spaces: Multiple models have a small minimum turning radius, some even as low as 2680mm, and with a free lifting height of about 130mm, they can flexibly turn and operate in small areas such as warehouses, as well as smoothly enter height limited spaces such as 2.2-meter-high basements or containers.

FD15/20/25/30/35/38TIIIBalanceweight Type Forklift Truck With Engine

Type	No.	Item	Code	Unit	Data
Identification	1.01	Manufacturer			LONKING
	1.02	Model			FD15T III	FD20T III	FD25T III	FD30TE	FD35TE	FD38T III
	1.03	Power type			Gasoline/LPG
	1.04	Rated capacity	Q	kg	1500	2000	2500	3000	3500	3800
	1.05	Load center	J	mm	500	500	500	500	500	500
Dimensions	2.01	STD Max height (with backrest)		mm	3906	3935	3935	4272	4210	4210
	2.02	STD Max lifting height	h1	mm	3000	3000	3000	3000	3000	3000
	2.03	Overhead guard height	h4	mm	2090	2110	2110	2130	2130	2140
	2.04	Overall length (with fork)	L1	mm	3180	3590	3650	3850	3900	3995
	2.05	Wheelbase	L2	mm	1400	1650	1650	1760	1760	1900
	2.06	Front overhang	L3	mm	410	460	460	480	496	496
	2.07	Rear overhang	L4	mm	425	410	470	540	570	530
	2.08	Min.ground clearance (Frame/Mast)	m1/m2	mm	100/105	150/110	150/110	160/130	160/130	180/150
	2.09	Overall width	W1	mm	1090	1160	1160	1240	1240	1290
	2.1	Adjusting range of fork (outside)		mm	226-970	240-1040	240-1040	255-1095	255-1095	300-1160
	2.11	STD Fork size (L5WT)		mm	920×100×35	1070×120×40	1070×120×40	1070×122×45	1070×122×50	1070×150×50
	2.12	Front wheel tread	S	mm	890	980	970	1000	1000	1040
	2.13	Rear wheel tread	P	mm	870	2250	980	980	980	985
	2.14	Min.turning radius	R1	mm	1950	3900	2300	2400	2420	2620
	2.15	Min aisle width for pallet 1000×1200,crossways		mm	3630	4150	3970	4215	4260	4335
	2.16	Min aisle width for pallet 800×1200,lengthways		mm	3760	1070×120×40	4160	4350	4390	4515
Tires	3.01	Wheels number, front/rear (X=driven wheels)			X=2/2
	3.02	Tires type			Pneumatic
	3.03	Tires size, front			6.5-10-10PR	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR	250-15-16PR
	3.04	Tires size, rear			5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.5-10-10PR
Other Details	4.01	Max.traveling speed, loaded/unloaded		km/h	14/15	18/20	18/20	18.5/20	18.5/20	23/24
	4.02	Max.lifting speed, loaded/unloaded		mm/s	480/500	530/550	530/550	485/505	380/400	380/400
	4.03	Lowering speed, loaded/unloaded		mm/s	Loaded≤600/Unloaded≥300
	4.04	Max.gradient, loaded/unloaded		%	20	20	20	20	20	20/15
	4.05	STD operating weight (with oil & water)		kg	2680	3420	3770	4220	4650	5000
	4.06	Axles loading,front/rear (loaded)		kg	3760/420	4725/525	5643/627	6620/650	7265/865	7920/880
	4.07	Axles loading,front/rear (unloaded)		kg	1072/1608	1300/1950	1508/2262	1724/2546	1760/2870	2001/2999
	4.08	Service brake			Power brake-pedal
	4.09	Parking brake			Mechanical-hand brake lever
	4.1	Drive type			Hydraulic gearbox with mechanical reversing
	4.11	Fuel tank capacity		L	41	50	50	60	60	80
	4.12	Battery votage/capacity		V/Ah	12/60	12/80
