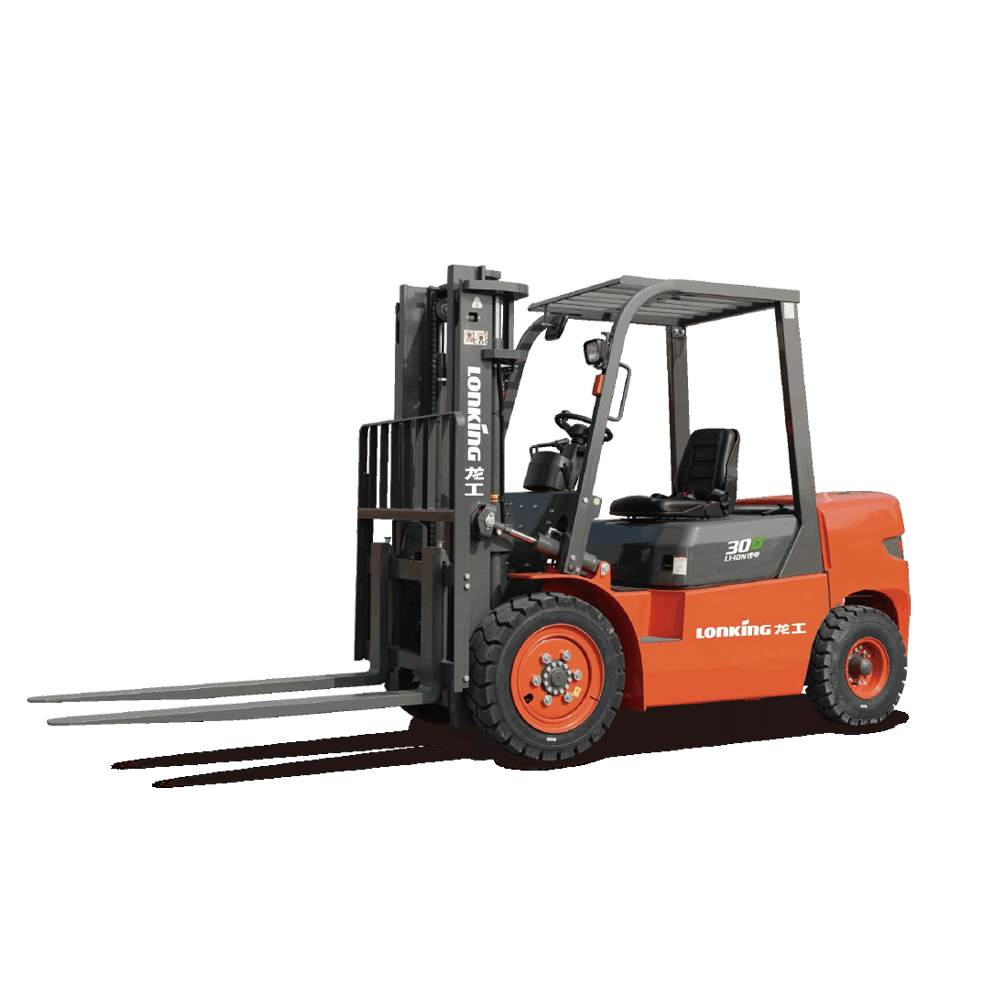

CPD20/25/30/35ESLBalanceweight Type Forklift Truck With Battery

  • CPD20/25/30/35ESLBalanceweight Type Forklift Truck With Battery
  • video
    Easy maintenance and low cost of use: The equipped maintenance free sealed motor has a protection level of up to IP54, and can operate stably in dusty and humid environments without bearing maintenance costs for components such as carbon brushes and relays. And the overall structure is relatively simple, with fewer components than internal combustion forklifts, resulting in a lower probability of failure. Daily maintenance only needs to focus on the battery status; In addition, the cost of electricity is much lower than that of fuel, and long-term use can significantly save the comprehensive expenses of energy consumption and maintenance for enterprises.

    CPD20/25/30/35ESLBalanceweight Type Forklift Truck With Battery


    TypeNo.ItemCode UnitData
    Identification1.01Manufacturer

    LONKING
    1.02Model

    CPD20ESLCPD25ESLCPD30ESLCPD35ESL
    1.03Power type

    Electric (AC)
    1.04Rated capacityQkg2000250030003500
    1.05Load centerJmm500500500500
    Dimensions2.01STD Max height (with backrest)
    mm3935393542104210
    2.02STD Max lifting heighth1mm3000300030003000
    2.03Overhead guard heighth4mm2110211021302130
    2.04Overall length (with fork)L1mm3590365038503900
    2.05WheelbaseL2mm1650165017601760
    2.06Front overhangL3mm460460478493
    2.07Rear overhangL4mm410470540570
    2.08Min.ground clearance (Frame/Mast)m1/m2mm150/110150/110160/130160/130
    2.09Overall widthW1mm1160116012401240
    2.1Adjusting range of fork (outside)
    mm240-1040240-1040250-1050250-1050
    2.11STD Fork size (L5*W*T)
    mm1070×120×401070×120×401070×125×451070×125×50
    2.12Front wheel treadSmm97097010001000
    2.13Rear wheel treadPmm980980980980
    2.14Min.turning radiusR1mm2250230024002420
    2.15Min aisle width for pallet 1000×1200,crossways
    mm3900397042154260
    2.16Min aisle width for pallet 800×1200,lengthways
    mm4150416043504390
    Tires3.01Wheels number, front/rear (X=driven wheels)

    X=2/2
    3.02Tires type

    Pneumatic
    3.03Tires size, front

    7.00-12-12PR7.00-12-12PR28×9-15-14PR28×9-15-14PR
    3.04Tires size, rear

    6.00-9-10PR6.00-9-10PR6.50-10-10PR6.50-10-10PR
    Other Details4.01Max.traveling speed,unloaded/loaded
    km/h12/1112/1112/1112/11
    4.02Max.lifting speed, unloaded/loaded
    mm/s350/300350/280350/250300/200
    4.03Lowering speed,unloaded/loaded
    mm/s340/320340/320500/350340/320
    4.04Max.gradient, unloaded/loaded
    %20/1520/1515/1515/15
    4.05STD operating weight (with oil & water)
    kg3255356040204420
    4.06Axles loading,front/rear (loaded)
    kg4725/5255490/6106520/6407265/865
    4.07Axles loading,front/rear (unloaded)
    kg1300/19501440/21601680/24801760/2870
    4.08Drive motor
    kw10101010
    4.09Lift motor
    kw12121212
    4.1Controller

    SUPEREC
    4.11Li-ion Battery votage/capacity
    V/Ah80/205
